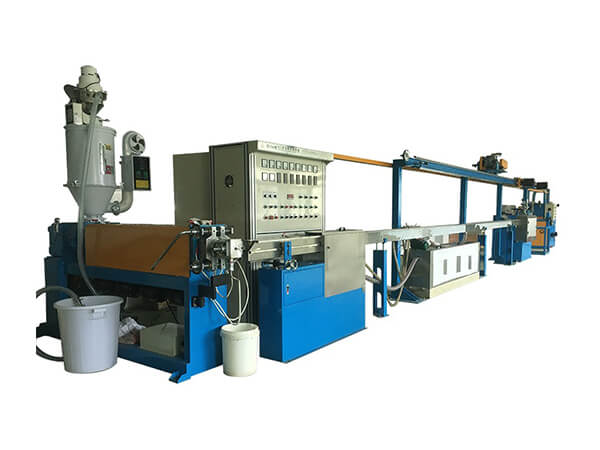

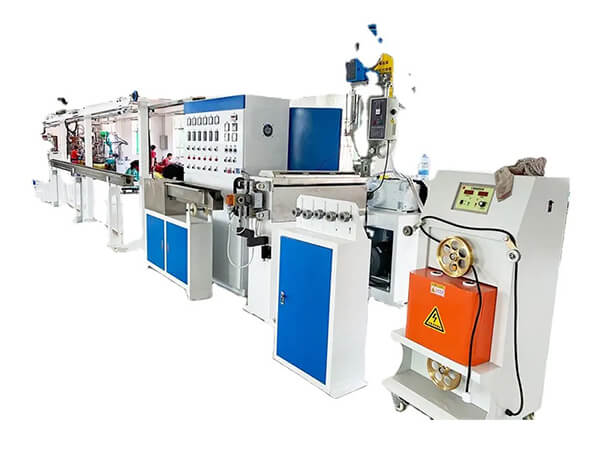

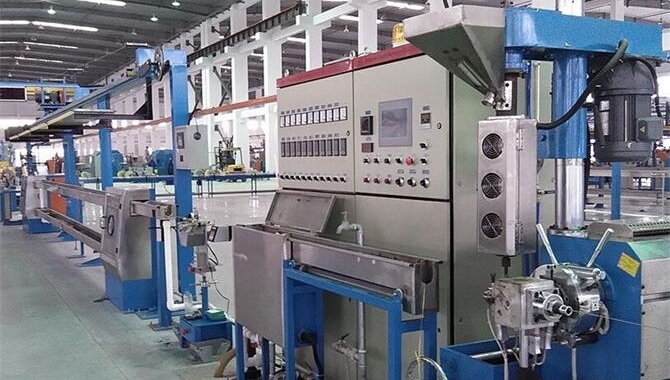

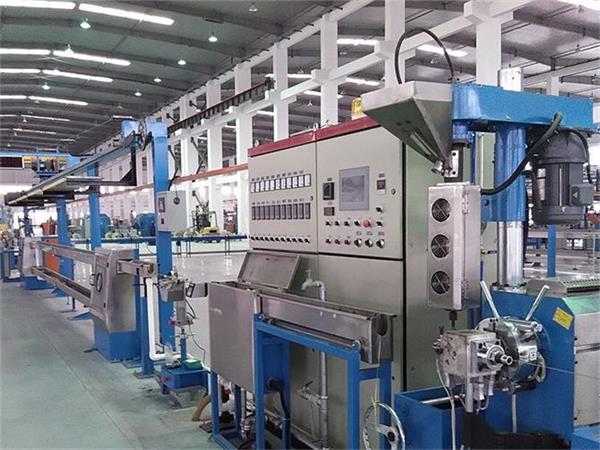

Copper wire cable extruder line

Technical Parameter

Type	Screw Date	Screw Date	Screw Date	Extrude Capacity	Extrude Capacity	Extrude Capacity	Outer Diameter	Motor
	Dia. (mm)	L/D	Speed	PVC	LDPE	LSNH	(mm)	(KW)
MY-40G	40	26:1	120	24	14		0.8-3	11
MY-50G	50	26:1	120	60	35		1-6	15
MY-60G	60	26:1	120	100	60	22	2-8	22
MY-70G	70	26:1	120	160	95	36	3-15	30
MY-80G	80	26:1	110	220	130	48	5-20	37
MY-90G	90	26:1	100	310	180	65	8-25	55
MY-100G	100	25:1	90	400	240	90	10-30	55
MY-120G	120	25:1	90	550			15-40	90
MY-150G	150	25:1	60	900	550			200
MY-200G	200	25:1	60	1300	1100	750		280(315)

Model	MY-50	MY-70	MY-90	MY-100	MY-120
Screw dia.	50mm	70mm	90mm	100mm	120mm
Wire size	0.5 - 4.0mm	1.0-8.0mm	5-30mm	8-50mm	10-80mm
Max. output	90kg/h	150kg/h	250kg/h	300kg/h	400kg/h
Main power	15HP	30HP	50HP	75HP	100/125HP
Payoff spool	400-500mm	400-630mm	800-1250mm	1400mm	2000mm
Capstan power	5HP	5HP	7.5HP	10HP	10HP
Take Up Power	5HP	5HP	7.5HP	10HP

Items		model								unit
		50	60	70	80	90	100	120	150	//
Plastics Type	screw	50	60	70	80	90	100	120	150	mm
	L/D rate	26	26	26	26	26	25	25	25	//
	control zone	3	3	4	4	5	5	6	6	num.
PVC/LDPE	motor power	15	22	27	33	55	75	110	150	kw
	max output	90	100	135	160	330	400	600	1000	kg/h
	screw speed	150	140	120	120	110	100	90	80	rpm
	screw torque	1250	1700	3400	3800	4600	6400	13500	24000	kN/m
MDPE/HDPE	motor power	15	22	27	33	55	75	110	150	kw
	max output	60	65	80	100	180	220	400	650	kg/h
	screw speed	100	100	100	80	80	80	70	60	rpm
	screw torque	1900	2600	4700	5500	6900	9600	18400	32000	kN/m
LSZH	motor power	22	30	37	45	65	90	132	150	kw
	max output	65	75	120	140	300	380	450	600	kg/h
	screw speed	90	90	75	70	70	70	65	55	rpm
	screw torque	2600	3900	5200	6300	7500	10500	16500	21500	kN/m

Typical Line Composition

LINE COMPOSITION		EXTRUSION LINE MODEL
		MY-EP50	MY-EP60	MY-EP70	MY-EP80	MY-EP90	MY-EP100	MY-EP120	MY-EP150
Pay-off	Active pay-off	●	●	●	●	○	○	○	○
	Passive pay-off	—	○	○	○	●	●	●	●
Wire straightener		●	●	●	●	●	●	●	●
Pre-heater		○	○	—	—	—	—	—	—
Powder applicator		—	—	○	○	○	○	○	○
Single screw extruder		●	●	●	●	●	●	●	●
Cross-head	Self-centering	●	●	●	○	○	○	○	○
	Manual adjustable	○	○	○	●	●	●	●	●
Granules feeding device	Hopper dryer	●	●	●	●	●	●	●	●
	Stainless loader	○	○	○	○	○	○	○	○
Hot water trough	1.5m+0.5m movable	●	●	●	●	●	○	○	○
Printing device	Ink-jet printer	○	○	○	○	○	○	○	○
	Gravure printing device	●	●	●	●	●	●	●	●
Laser diameter gauge	X single dimensional	●	●	●	●	●	●	○	○
	X-Y two dimensional	○	○	○	○	○	○	○	○
Cold water tough	Fixed type with air wiper	●	●	●	●	●	●	●	●
Industry chiller		○	○	○	○	○	○	○	○
Capstan	Dual wheel capstan	●	●	●	●	●	○	○	—
	Caterpillar	—	—	—	—	○	●	●	●
Accumulator		●	●	●	●	○	○	○	—
Length counter	Encoder type	●	●	●	●	●	●	●	●
Spark tester(customer-specified)		○	○	○	○	○	○	○	○
Take-up	Dual bobbin use	●	●	●	●	●	—	—	—
	Single bobbin use	○	○	○	○	○	●	●	●
Line control system	HMI	●	●	●	●	●	●	●	●
	HMI+IPC	○	○	○	○	○	○	○	○
Remarks		● Standard/○ Optional/ —None

Features

1. Suitable material: PVC, PE, XLPE, LSZH, TPU, TPE
2. Application: for copper wire insulation and core wire sheath
3. Working type: Extruding
4. Insulation type: single layer, single layer + color stripping, double layer

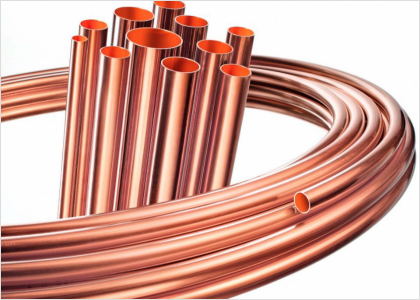

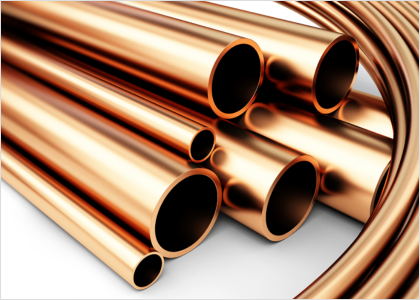

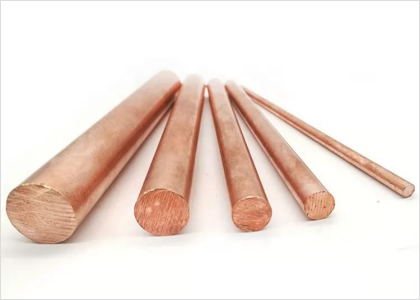

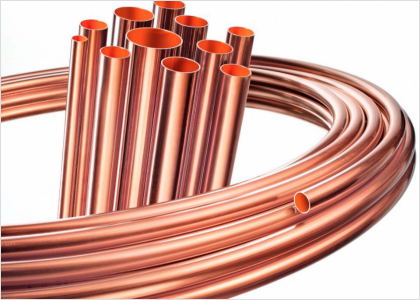

Finished Products

Finished products by upcasting machine can be:

Advantages

1. Iron cast gear box body ensure long life with low noise.
2. Annealing part is Horizontal structure, operate easily.
3. Fast die change system keep high efficiency when produce different diameter. And dies quantity decrease a lot at the same time.
4. The capstan is coated with tungsten carbide power can support long life.
5. There is a small inclination between the axis of the drawing capstans and the gear box transmission axis.
6. High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
